Timeline

2 weeks

Deliverables

To-scale model with external and internal renders of watch.

SUMMARY

I disassembled a casino watch and created a 3D replica of its components to better understand how tolerances and assembly impact manufacturability. This hands-on project focused on measuring internal parts, modeling for fit, and aligning design choices with real-world production constraints. It served as a deep dive into DFMA fundamentals.

I disassembled a casino watch and created a 3D replica of its components to better understand how tolerances and assembly impact manufacturability. This hands-on project focused on measuring internal parts, modeling for fit, and aligning design choices with real-world production constraints. It served as a deep dive into DFMA fundamentals.

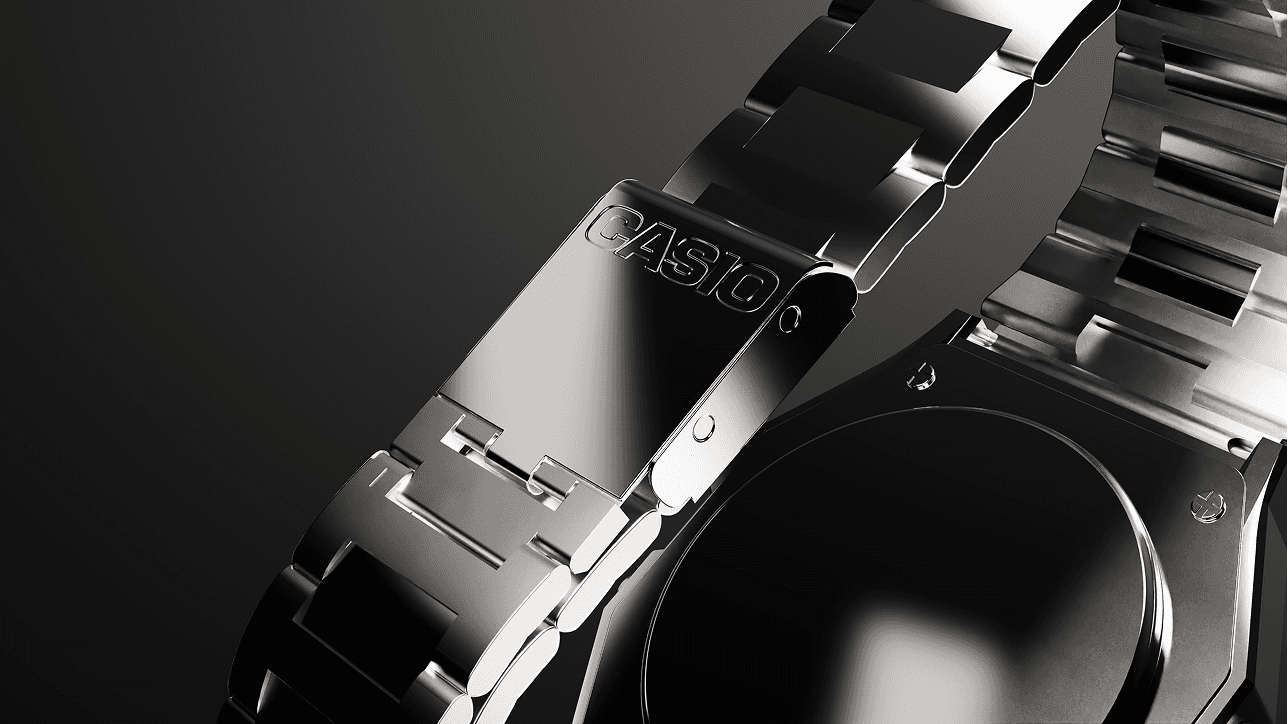

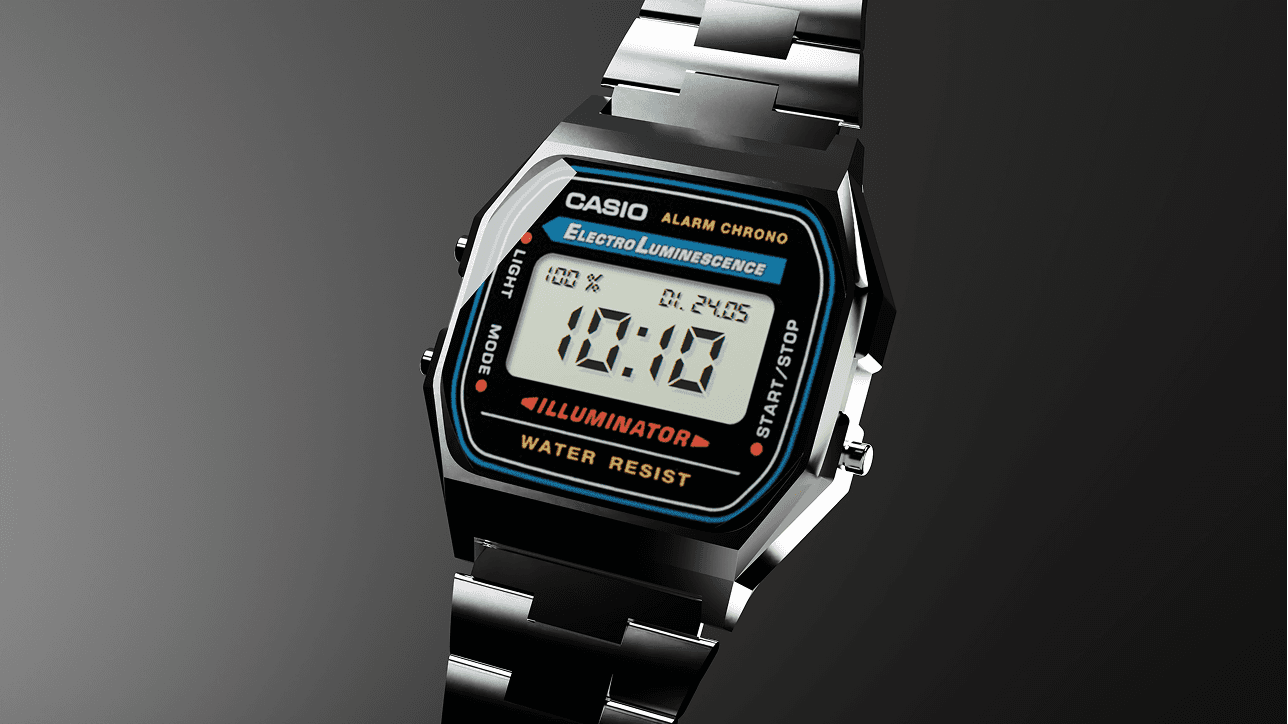

DIGITAL RENDERS

MODELING

Teardown & Analysis

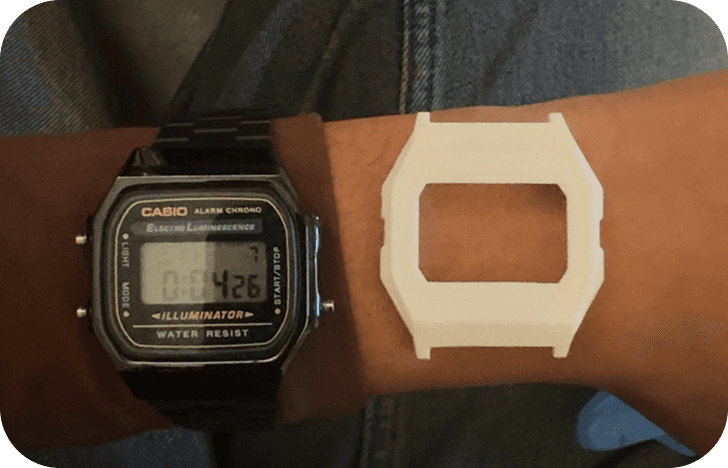

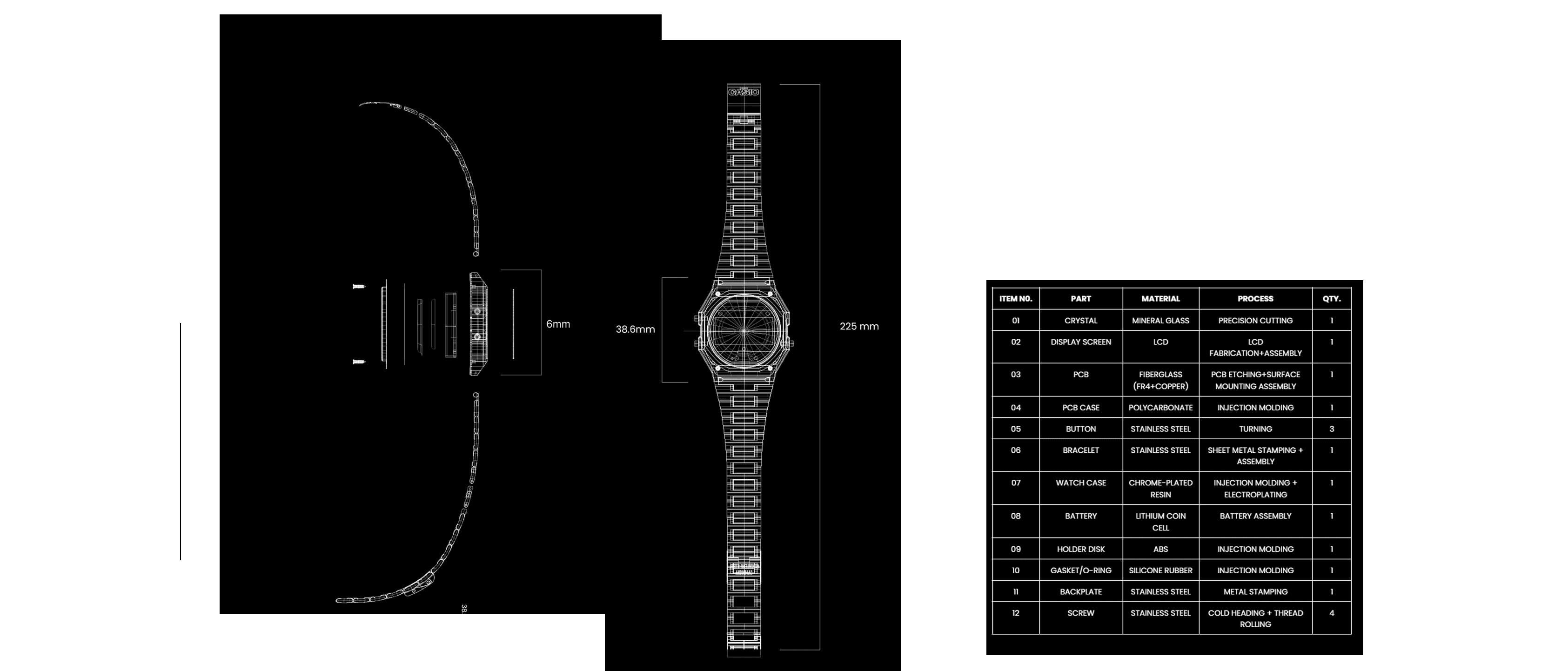

Casio’s A16WA-1 watch was disassembled and measured to ensure accurate scaling. Select components were intentionally scaled up in size or thickness to enhance visibility and durability in the 3D-printed model, especially parts that were originally too thin to print without breaking.

INSIDE THE WATCH

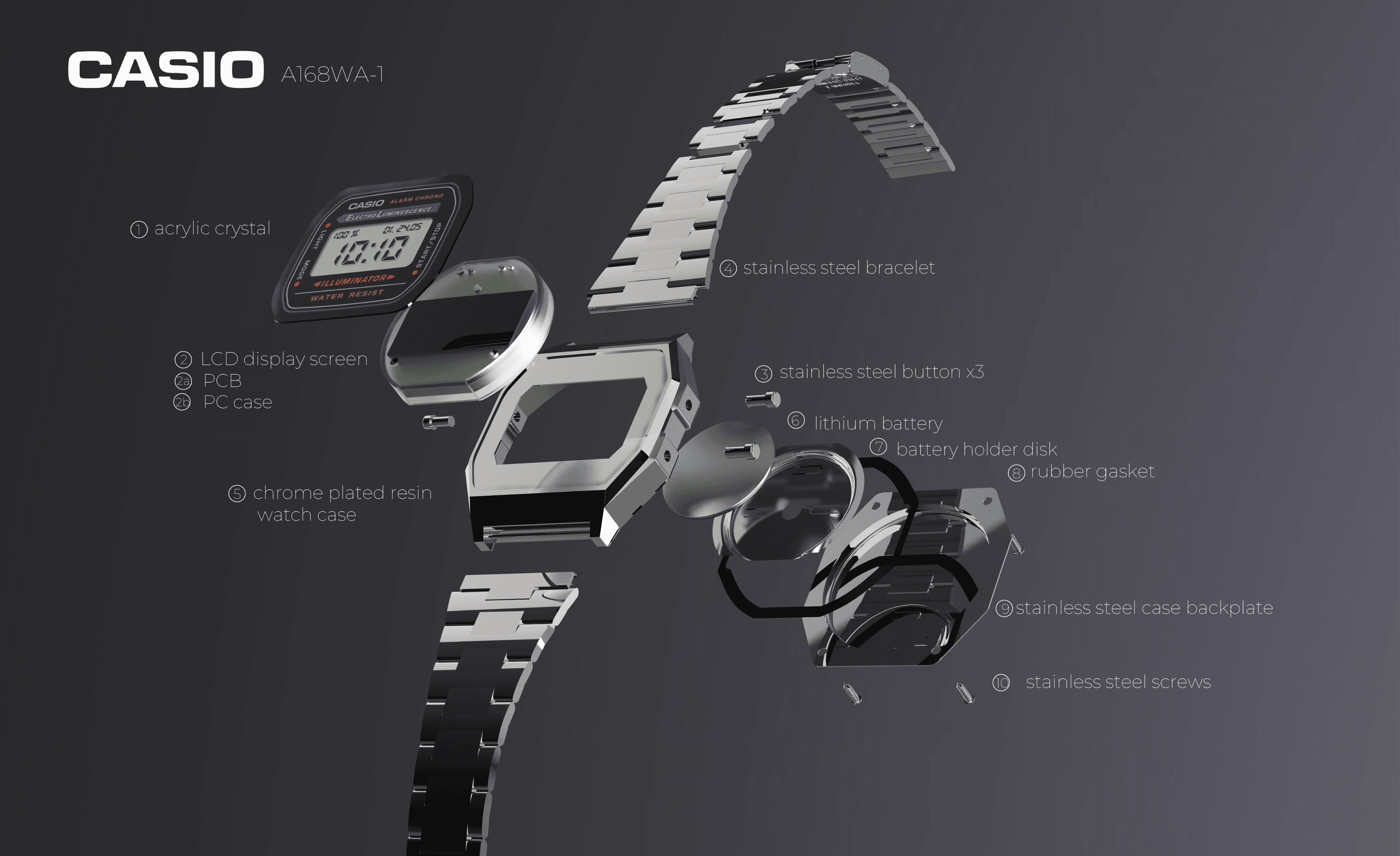

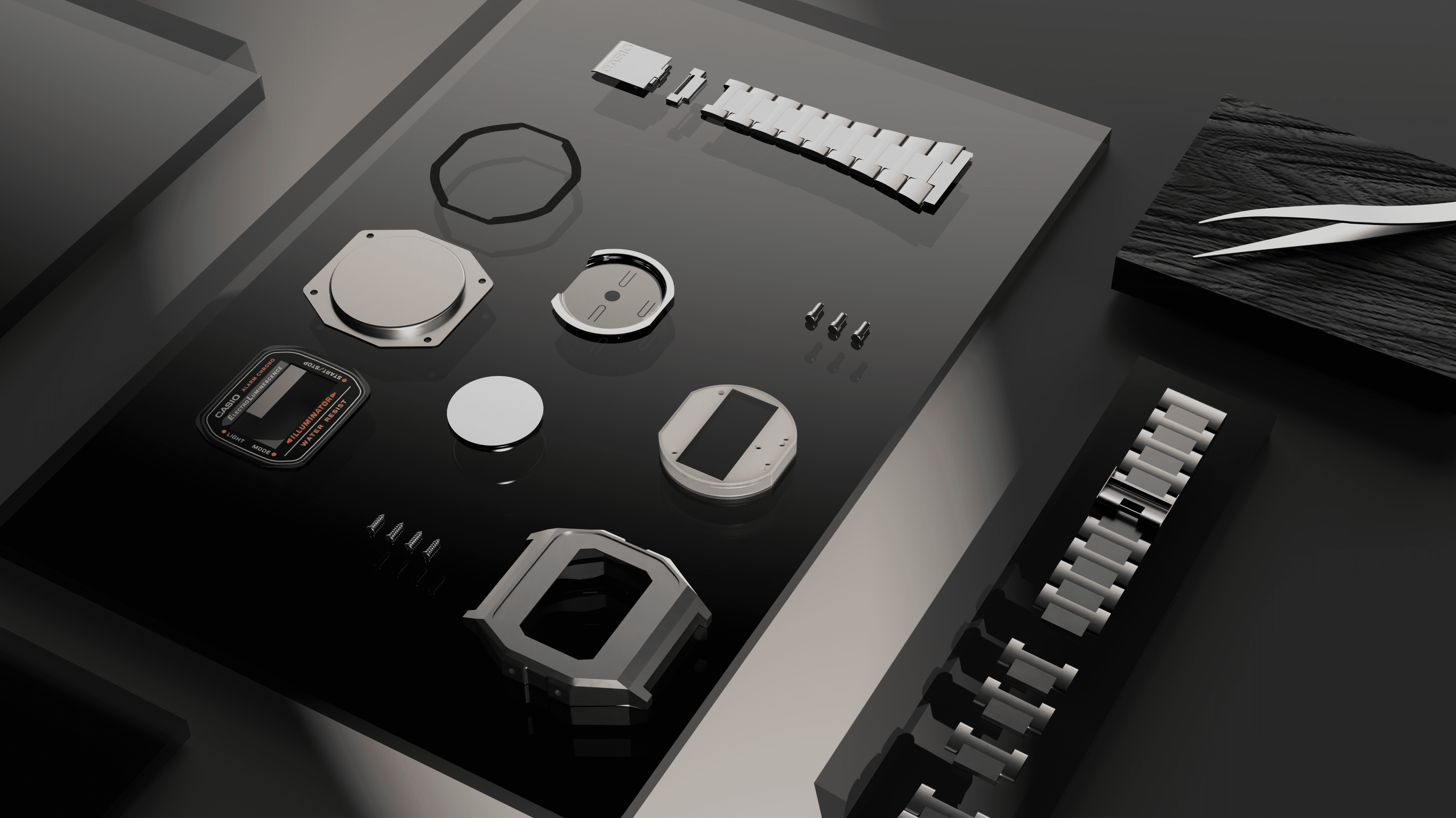

Exploded View

PROCESS

Printed Components

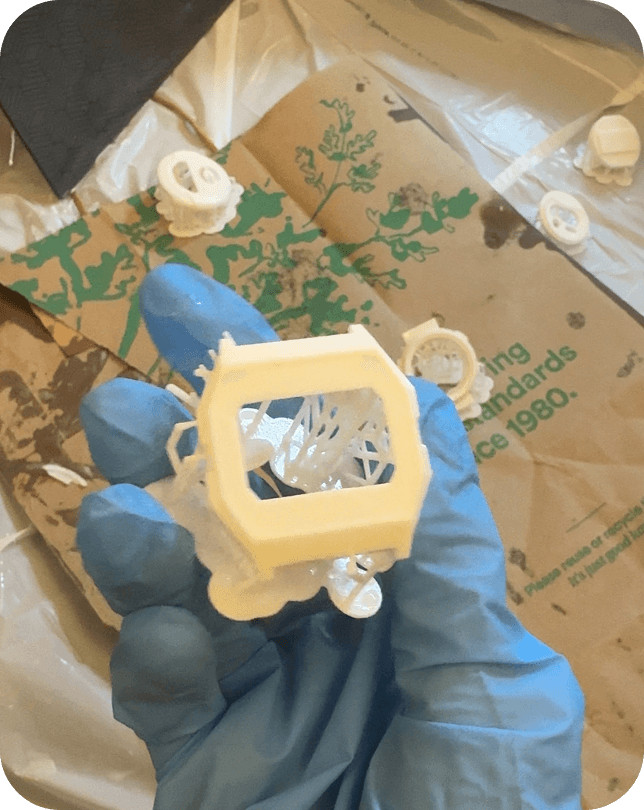

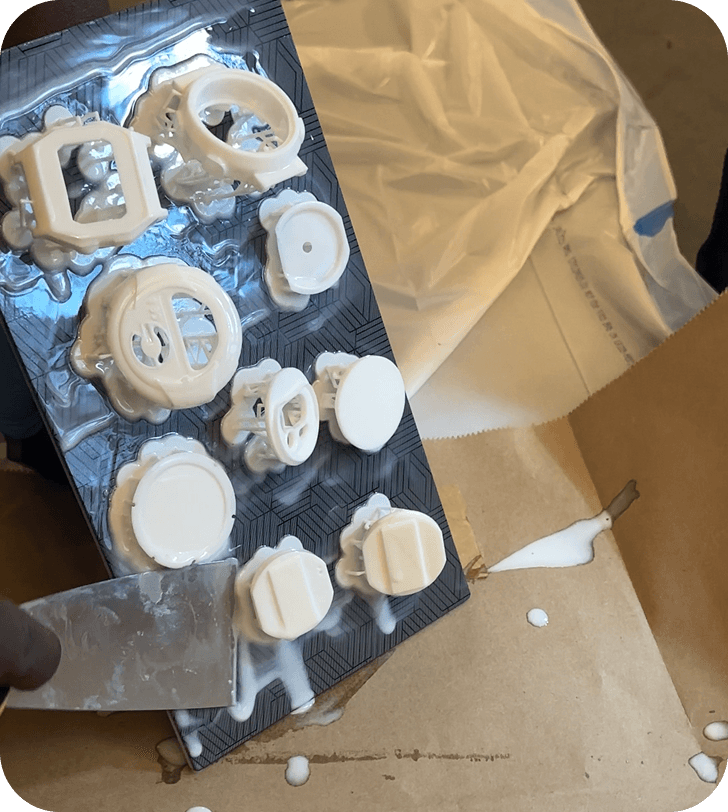

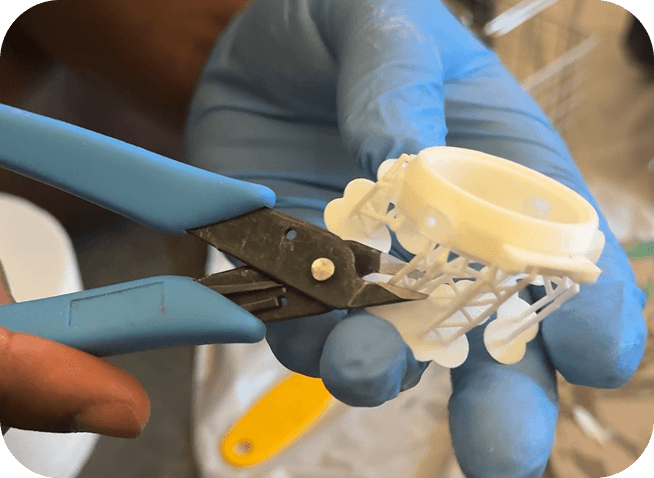

Class A surfaces were printed with resin. Smaller parts were printed with PLA. These materials were selected for their ability to withstand the high temperatures generated during resin curing.

Sanding

Pieces with layer lines and supports were sanded.

Casting

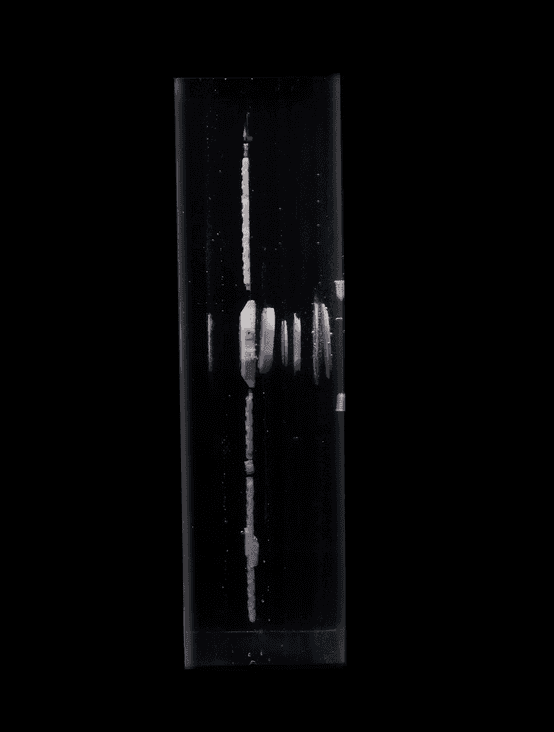

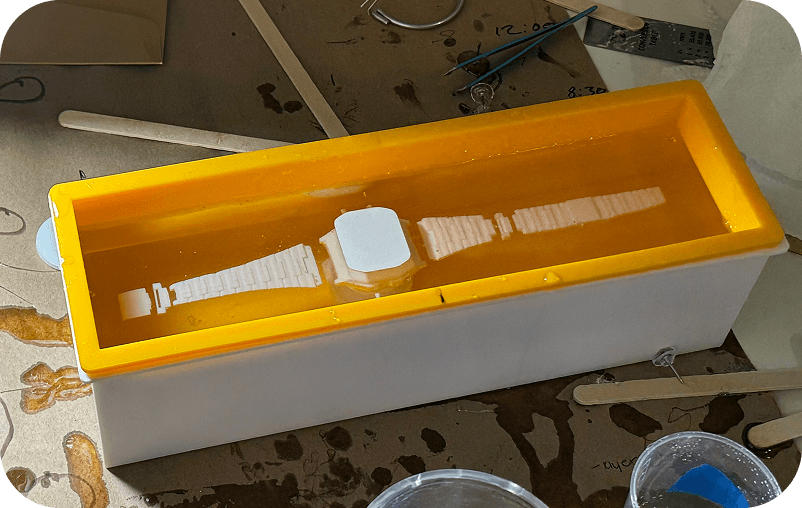

Pieces were cast in resin. Resin was poured and allowed to sit, a piece of the watch was placed with tweezers, after some time the next layer of resin was poured. This process was repeated for several layers.

OUTCOME

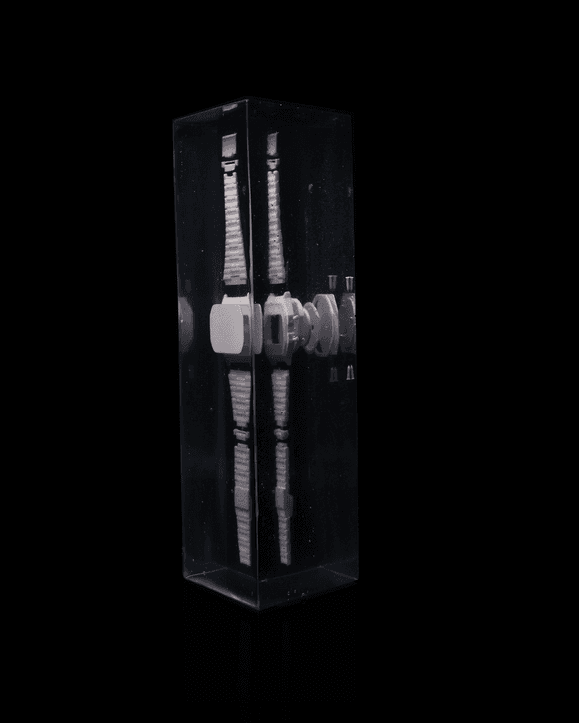

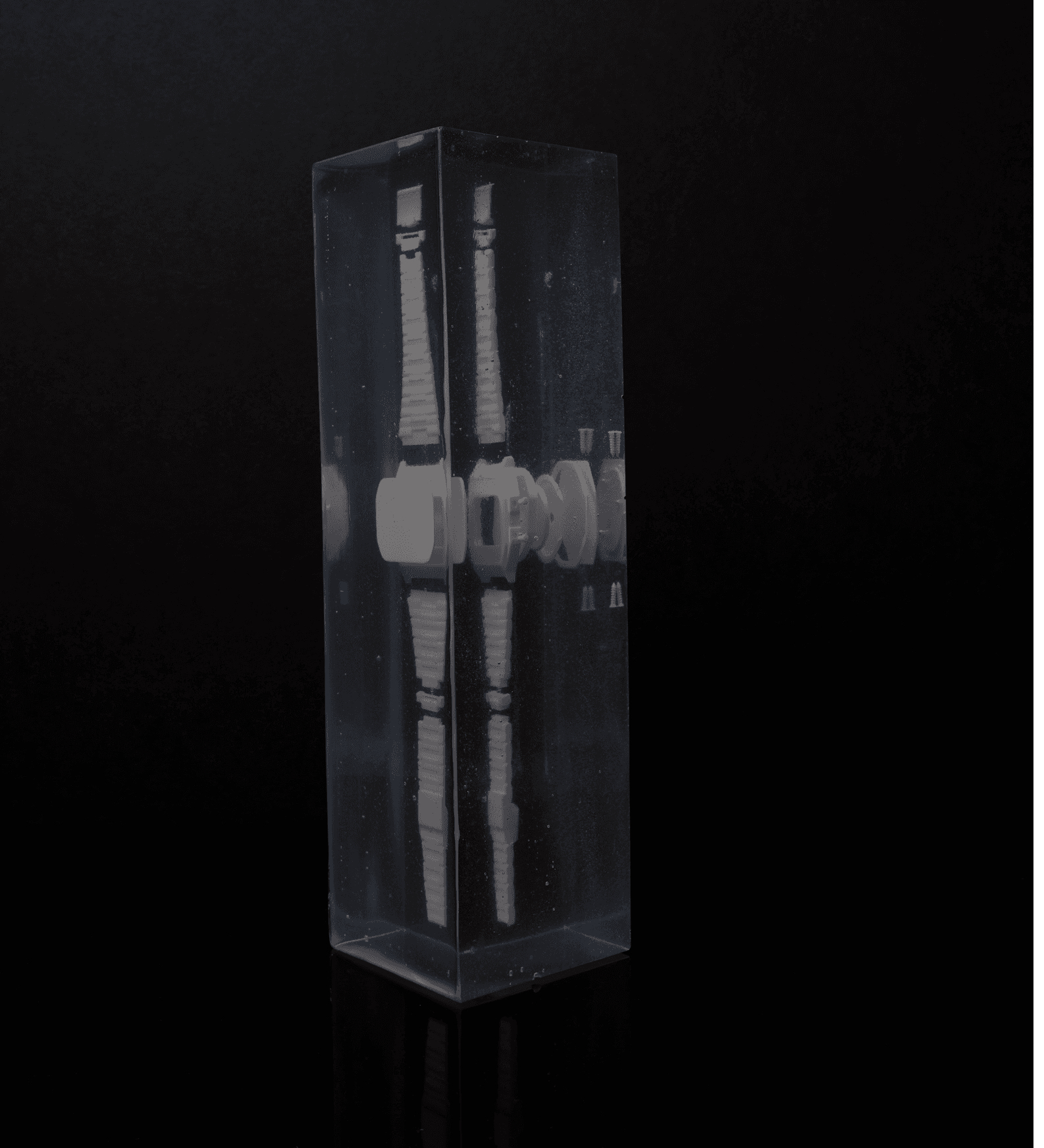

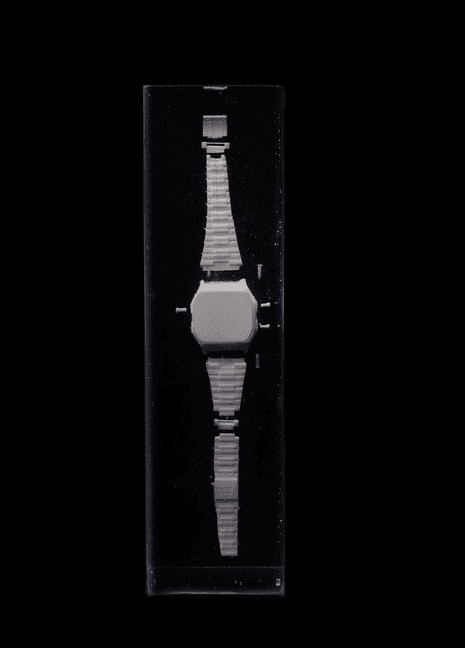

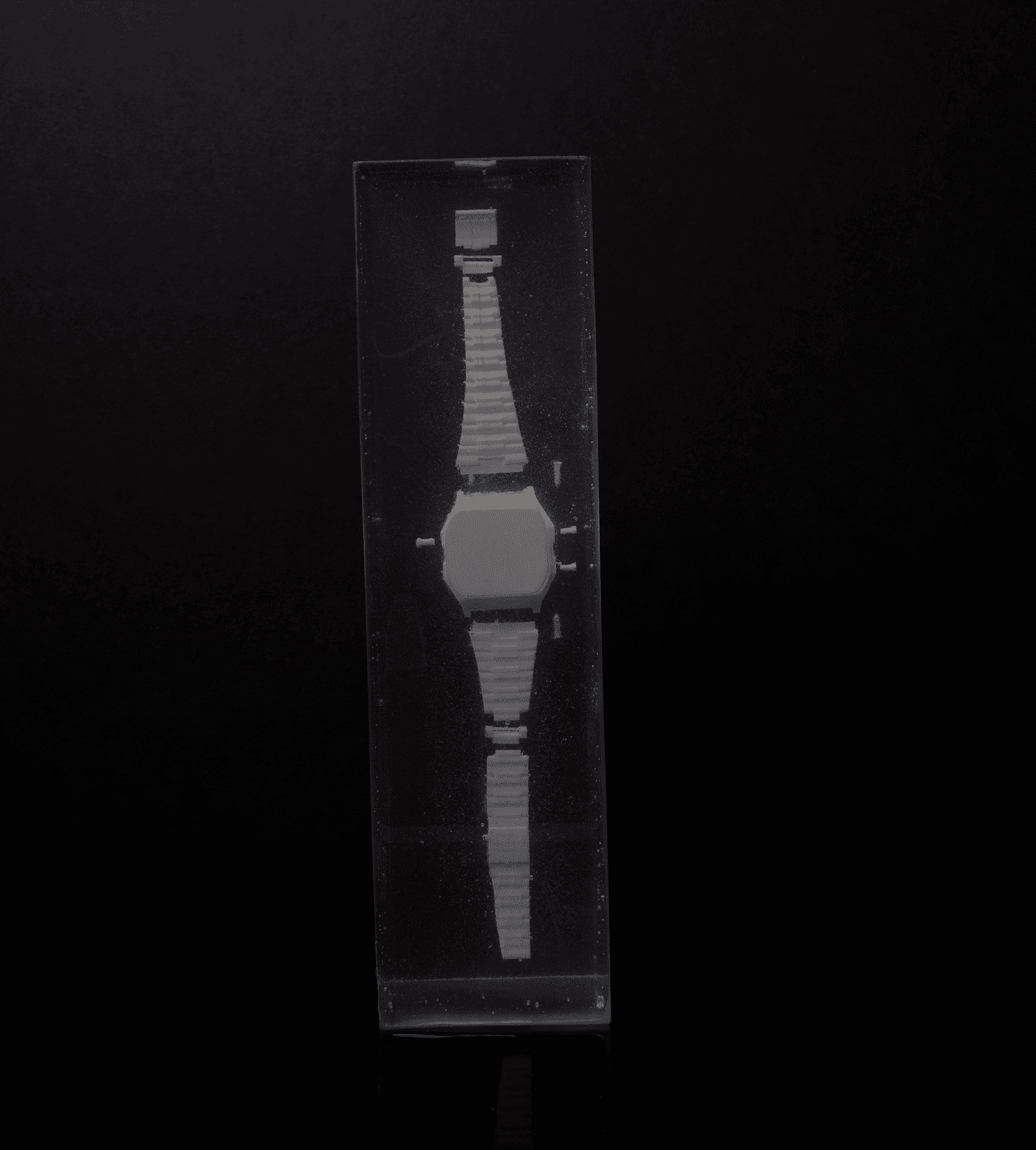

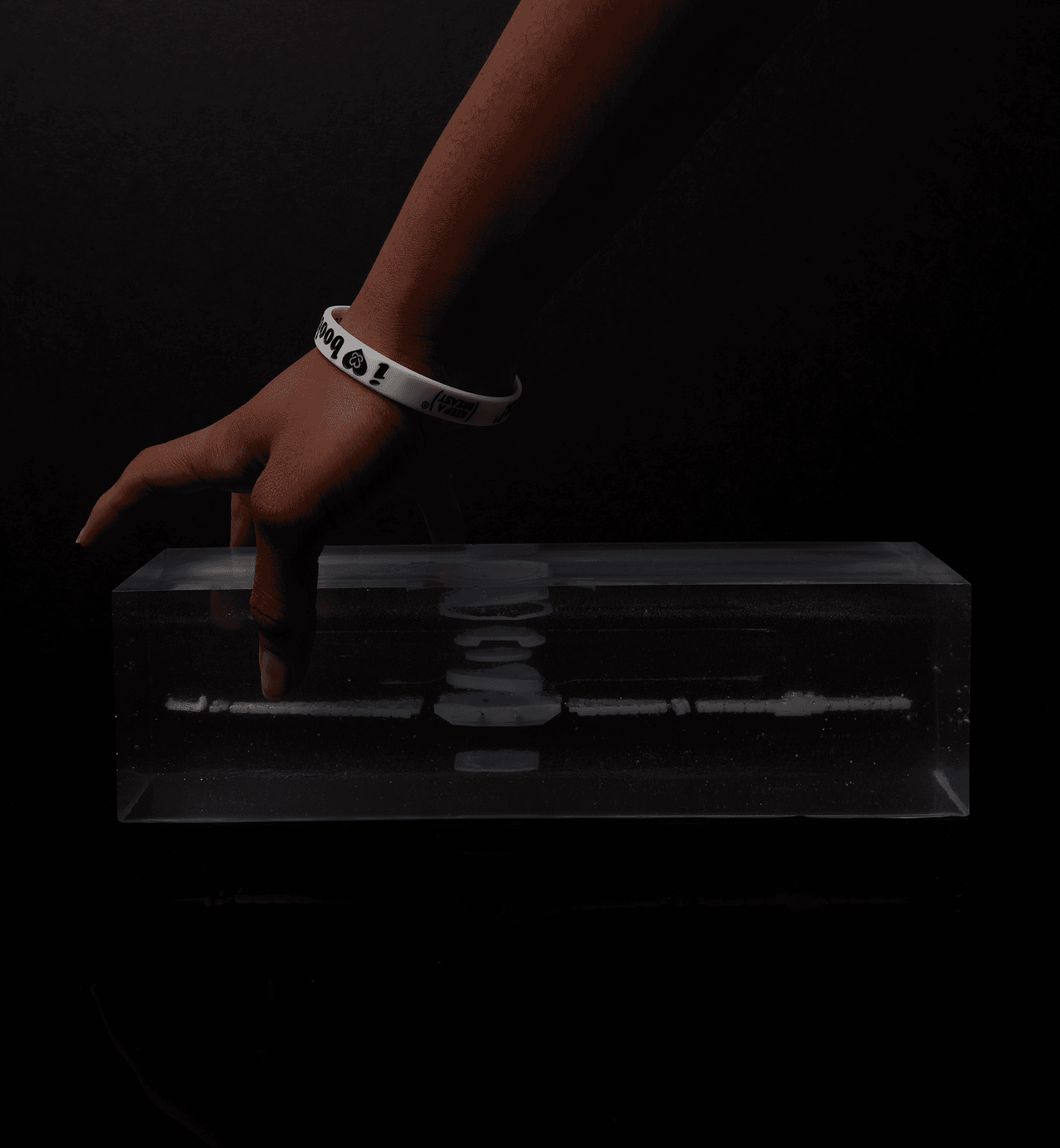

Final Physical Model
